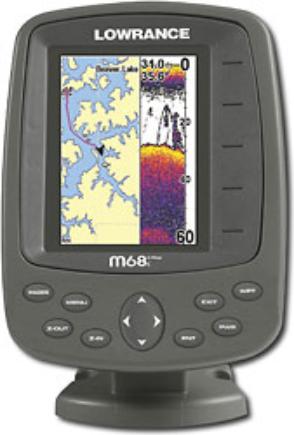

Lowrance X68C S/Map Fish Finder Parts
Product Description:
Find fish and yourself in dazzling color, at a highly affordable price! Features high-detail
hydrographic mapping and an internal GPS+WAAS receiver.
View Points
* High-brightness 3.5" (8.9cm) diagonal 256-color, 1/4 VGA active matrix TFT transflective LCD
* Impressive 320V x 240H pixel resolution
* White LED backlit screen and keypad for night or low-light viewing
* Simplified keypad with Menu and Pages keys
* Overlay Data feature displays GPS information over sonar screen, and sonar information
over GPS screens
* Space-saving case design with adjustable tilt, quick-mount/release convenience
Sonar
* Depth penetration to 600 feet* (183 m)
* True 800 watts peak-to-peak transmit power
* Unique full-screen LCD flasher mode with COLORLINE™ displays real-time sonar readings
* Other unique sonar features include: HyperScroll™, Advanced Signal Processing (ASP™),
Advanced Fish Symbol I.D.™, FishTrack™, and more
* 2X and 4X zoom, with zoom-bottom-tracking
* Auto or manual sensitivity, surface clarity, noise rejection, and depth range controls
* Selective on/off shallow, deep, zone, and fish alarms
* Low-profile high-performance 12º 200 kHz Skimmer® - with built-in water surface temp sensor
- optional sensors for livewell/baitwell temp and speed/distance log readings
* Up to 60-degree coverage area using high sensitivity
* Operates up to 70 mph (61 kts)
GPS/Mapping
* Full 12-parallel channel GPS+WAAS receiver with advanced internal satellite antenna
* Special built-in Lowrance high-detail hydrographic mapping of lakes, rivers, Great Lakes, and
U.S. coastal waters with nav aids
* Mega-memory saves up to 1,000 waypoints, 1,000 event markers,
Find fish and yourself in dazzling color, at a highly affordable price! Features high-detail
hydrographic mapping and an internal GPS+WAAS receiver.
View Points
* High-brightness 3.5" (8.9cm) diagonal 256-color, 1/4 VGA active matrix TFT transflective LCD
* Impressive 320V x 240H pixel resolution
* White LED backlit screen and keypad for night or low-light viewing
* Simplified keypad with Menu and Pages keys
* Overlay Data feature displays GPS information over sonar screen, and sonar information
over GPS screens
* Space-saving case design with adjustable tilt, quick-mount/release convenience
Sonar
* Depth penetration to 600 feet* (183 m)
* True 800 watts peak-to-peak transmit power
* Unique full-screen LCD flasher mode with COLORLINE™ displays real-time sonar readings
* Other unique sonar features include: HyperScroll™, Advanced Signal Processing (ASP™),
Advanced Fish Symbol I.D.™, FishTrack™, and more
* 2X and 4X zoom, with zoom-bottom-tracking
* Auto or manual sensitivity, surface clarity, noise rejection, and depth range controls
* Selective on/off shallow, deep, zone, and fish alarms
* Low-profile high-performance 12º 200 kHz Skimmer® - with built-in water surface temp sensor
- optional sensors for livewell/baitwell temp and speed/distance log readings
* Up to 60-degree coverage area using high sensitivity
* Operates up to 70 mph (61 kts)
GPS/Mapping
* Full 12-parallel channel GPS+WAAS receiver with advanced internal satellite antenna
* Special built-in Lowrance high-detail hydrographic mapping of lakes, rivers, Great Lakes, and
U.S. coastal waters with nav aids
* Mega-memory saves up to 1,000 waypoints, 1,000 event markers,
200 khz transducer
HST-WSU Part #106-48
Transom mount, 20 degree skimmer (200Khz) with built-in temperature. Includes power cable.
(20 ft cable)
HS-WSU Part #106-51
Transom-mount, 20 degree skimmer (200kHz). Includes power cable. (20 ft cable)
PDRT-WSU Part #106-69
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). Includes power
cable. (20 ft cable)
PDT-WSU Part #000-0106-50
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)
PD-WSU Part #106-52
Trolling motor mount or shoot-thru-hull, 20 degre power cable. (20 ft cable)
PTI-WSU Part #106-68
Portable-mount, 20 degree ice fishing type (200 kHz). Includes power cable. (7 ft cable)
PTT-WSU Part #106-55
Portable-mount, 20 degree skimmer with built in temperature sensor (200 kHz). Includes power
cable. (12 ft cable)
PT-WSU Part #106-54 $59.95
Portable-mount, 20 degree skimmer (200 kHz). Includes power cable. (15 ft cable)
Adapter Cables
NDC-4 Part #119-31
NMEA adapter cable.
Dual Frequency Transducer
HST-50/200-WSU Part #106-49
Transom-mount, dual frequency skimmer with built in temperature sensor (50 kHz 35 degree &
200 kHz 12 degree). Includes power cable. (25 ft cable) CAN BE USED WITH X67C, M68C AND
FISHEASY 320C FOR DEEPWATER/SALTWATER APPLICATIONS
PT-WSU Part #106-54
Portable-mount, 20 degree skimmer (200 kHz). Includes power cable. (15 ft cable)
Gimbal Brackets and In-Dash Mounting Kits
GB-17 Part #113-16
Gimbal bracket.
GBSA-3 Part #113-26
Gimbal bracket swivel adapter.
Portable Accessories
PPP-12 Part #16-42
Portable AA-cell battery power pack (batteries not included).
PPP-15I Part #16-45
Ice fishing portable accessory pack. Includes ice fishing transducer, custom soft-side carry case,
battery and charger.
Speed/Temperature Sensors
ST-TU Part #99-75
Speed/temp probe.
TS-2U Part #99-77
Temperature probe for Temp 2.
Transducer Adapter Cables
TA-BL2U Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.
TA-X2U Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.
Transducer Extension Cables
XT-15U Part #99-91
15' transducer extension cable. Includes power lead.
HST-WSU Part #106-48
Transom mount, 20 degree skimmer (200Khz) with built-in temperature. Includes power cable.
(20 ft cable)
HS-WSU Part #106-51
Transom-mount, 20 degree skimmer (200kHz). Includes power cable. (20 ft cable)
PDRT-WSU Part #106-69
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). Includes power
cable. (20 ft cable)
PDT-WSU Part #000-0106-50
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)
PD-WSU Part #106-52
Trolling motor mount or shoot-thru-hull, 20 degre power cable. (20 ft cable)
PTI-WSU Part #106-68
Portable-mount, 20 degree ice fishing type (200 kHz). Includes power cable. (7 ft cable)
PTT-WSU Part #106-55
Portable-mount, 20 degree skimmer with built in temperature sensor (200 kHz). Includes power
cable. (12 ft cable)
PT-WSU Part #106-54 $59.95
Portable-mount, 20 degree skimmer (200 kHz). Includes power cable. (15 ft cable)
Adapter Cables
NDC-4 Part #119-31
NMEA adapter cable.
Dual Frequency Transducer
HST-50/200-WSU Part #106-49
Transom-mount, dual frequency skimmer with built in temperature sensor (50 kHz 35 degree &
200 kHz 12 degree). Includes power cable. (25 ft cable) CAN BE USED WITH X67C, M68C AND
FISHEASY 320C FOR DEEPWATER/SALTWATER APPLICATIONS
PT-WSU Part #106-54
Portable-mount, 20 degree skimmer (200 kHz). Includes power cable. (15 ft cable)
Gimbal Brackets and In-Dash Mounting Kits
GB-17 Part #113-16
Gimbal bracket.
GBSA-3 Part #113-26
Gimbal bracket swivel adapter.
Portable Accessories
PPP-12 Part #16-42
Portable AA-cell battery power pack (batteries not included).
PPP-15I Part #16-45
Ice fishing portable accessory pack. Includes ice fishing transducer, custom soft-side carry case,
battery and charger.
Speed/Temperature Sensors
ST-TU Part #99-75
Speed/temp probe.
TS-2U Part #99-77
Temperature probe for Temp 2.
Transducer Adapter Cables
TA-BL2U Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.
TA-X2U Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.
Transducer Extension Cables
XT-15U Part #99-91
15' transducer extension cable. Includes power lead.
