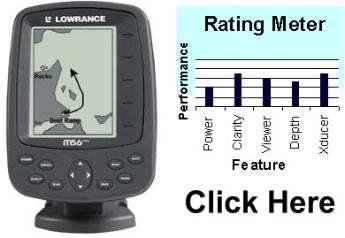

Lowrance M56 S/MAP Fish Finder Parts
Product Description:
An excellent choice in a high-performance, affordable monochrome sonar/GPS+WAAS marine
mapping unit!
* High-brightness 4" (10.2cm) diagonal Film SuperTwist LCD
* Highly visible 240V x 160H pixel resolution
* Depth penetration to 600 feet* (183 m)
* Full 12-parallel channel GPS+WAAS receiver with advanced internal satellite antenna
* Internal back-up memory keeps stored sonar settings and GPS data accessible for years
An excellent choice in a high-performance, affordable monochrome sonar/GPS+WAAS marine
mapping unit!
* High-brightness 4" (10.2cm) diagonal Film SuperTwist LCD
* Highly visible 240V x 160H pixel resolution
* Depth penetration to 600 feet* (183 m)
* Full 12-parallel channel GPS+WAAS receiver with advanced internal satellite antenna
* Internal back-up memory keeps stored sonar settings and GPS data accessible for years
200 khz transducer
HST-WSU Part #106-48
Transom mount, 20 degree skimmer (200Khz) with built-in temperature. Includes power cable.
(20 ft cable)
HS-WSU Part #106-51
Transom-mount, 20 degree skimmer (200kHz). Includes power cable. (20 ft cable)
PDRT-WSU Part #106-69
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). Includes power
cable. (20 ft cable)
PDT-WSU Part #000-0106-50
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)
PD-WSU Part #106-52
Trolling motor mount or shoot-thru-hull, 20 degre power cable. (20 ft cable)
PTI-WSU Part #106-68
Portable-mount, 20 degree ice fishing type (200 kHz). Includes power cable. (7 ft cable)
PTT-WSU Part #106-55
Portable-mount, 20 degree skimmer with built in temperature sensor (200 kHz). Includes power
cable. (12 ft cable)
Adapter Cables
NDC-4 Part #119-31
NMEA adapter cable.
Dual Frequency Transducer
HST-50/200-WSU Part #106-49
Transom-mount, dual frequency skimmer with built in temperature sensor (50 kHz 35 degree &
200 kHz 12 degree). Includes power cable. (25 ft cable) CAN BE USED WITH X67C, M68C AND
FISHEASY 320C FOR DEEPWATER/SALTWATER APPLICATIONS
Gimbal Brackets and In-Dash Mounting Kits
GB-17 Part #113-16
Gimbal bracket.
GBSA-3 Part #113-26
Gimbal bracket swivel adapter.
Portable Accessories
PPP-12 Part #16-42
Portable AA-cell battery power pack (batteries not included).
Speed/Temperature Sensors
ST-TU Part #99-75
Speed/temp probe.
TS-2U Part #99-77
Temperature probe for Temp 2.
Transducer Adapter Cables
TA-BL2U Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.
TA-X2U Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.
Transducer Extension Cables
XT-15U Part #99-91
15' transducer extension cable. Includes power lead.
HST-WSU Part #106-48
Transom mount, 20 degree skimmer (200Khz) with built-in temperature. Includes power cable.
(20 ft cable)
HS-WSU Part #106-51
Transom-mount, 20 degree skimmer (200kHz). Includes power cable. (20 ft cable)
PDRT-WSU Part #106-69
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). Includes power
cable. (20 ft cable)
PDT-WSU Part #000-0106-50
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)
PD-WSU Part #106-52
Trolling motor mount or shoot-thru-hull, 20 degre power cable. (20 ft cable)
PTI-WSU Part #106-68
Portable-mount, 20 degree ice fishing type (200 kHz). Includes power cable. (7 ft cable)
PTT-WSU Part #106-55
Portable-mount, 20 degree skimmer with built in temperature sensor (200 kHz). Includes power
cable. (12 ft cable)
Adapter Cables
NDC-4 Part #119-31
NMEA adapter cable.
Dual Frequency Transducer
HST-50/200-WSU Part #106-49
Transom-mount, dual frequency skimmer with built in temperature sensor (50 kHz 35 degree &
200 kHz 12 degree). Includes power cable. (25 ft cable) CAN BE USED WITH X67C, M68C AND
FISHEASY 320C FOR DEEPWATER/SALTWATER APPLICATIONS
Gimbal Brackets and In-Dash Mounting Kits
GB-17 Part #113-16
Gimbal bracket.
GBSA-3 Part #113-26
Gimbal bracket swivel adapter.
Portable Accessories
PPP-12 Part #16-42
Portable AA-cell battery power pack (batteries not included).
Speed/Temperature Sensors
ST-TU Part #99-75
Speed/temp probe.
TS-2U Part #99-77
Temperature probe for Temp 2.
Transducer Adapter Cables
TA-BL2U Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.
TA-X2U Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.
Transducer Extension Cables
XT-15U Part #99-91
15' transducer extension cable. Includes power lead.
