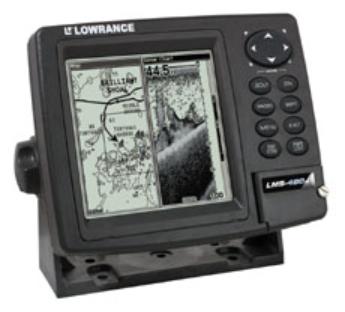

Lowrance LMS-480M Fish Finder Parts
Product Description:
Precise 480x480 resolution monochrome display in a compact case. Combination
Sonar/GPS/WAAS/Mapping unit combines the best from all worlds to give you the performance
and features you need!
* 16 level gray scale
* 200 kHz Skimmer® transducer with temperature sensor
* Super-sensitive receiver for enhanced shallow/deep water sonar performance
* GPS+WAAS precision with NMEA 2000® compliant LGC-3000 receiver/antenna module
Precise 480x480 resolution monochrome display in a compact case. Combination
Sonar/GPS/WAAS/Mapping unit combines the best from all worlds to give you the performance
and features you need!
* 16 level gray scale
* 200 kHz Skimmer® transducer with temperature sensor
* Super-sensitive receiver for enhanced shallow/deep water sonar performance
* GPS+WAAS precision with NMEA 2000® compliant LGC-3000 receiver/antenna module
200 khz transducer
HST-WSBL Part #106-72
Transom-mount, skimmer with built-in temperature sensor. (20 ft cable)
HS-WSBL Part #106-71
Transom-mount, skimmer transducer. (20 ft cable)
PDRT-WBL Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)
PDT-WBL Part #106-74
Trolling motor-mount, pod type with built-in temperature sensor. (12 ft cable)
PD-WBL Part #106-73
Trolling motor-mount or shoot-thru-hull, pod type transducer. (20 ft cable)
PTI-WBL Part #106-94
Portable-mount, 20 degree ice fishing type (200 kHz). (7 ft cable)
Dual Frequency Transducer
HP-DFBL260 Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).
HST-DFSBL Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)
Gimbal Brackets and In-Dash Mounting Kits
FM-5 Part #113-04
Flush mount kit.
GB-14 Part #101-99
Gimbal bracket.
GBSA-1 Part #51-83
Gimbal bracket swivel adapter.
MB-7 Part #101-62
R-A-M 1" ball mount bracket with arm and mounting plate.
Gimbal Knobs and Washers
GK-9 Part #101-80
Gimbal knobs.
Mapping
FHSP-E Part #108-206
Fishing Hot Spots Pro - EAST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the eastern United States. (AL, FL, GA, OH, KY, TN, SC, NC, VA, WV, PA, NY,
NJ, MD, DE, CT, RI, MA, NH, VT, ME).
FHSP-N Part #108-205
Fishing Hot Spots Pro - NORTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the northern United States. (ND, SD, MN, IA, WI, MI, IL, IN, MT, NE, WY).
FHSP-S Part #108-207
Fishing Hot Spots Pro - SOUTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the southern United States. (KS, OK, NM, TX, MO, AR, LA, MS, AZ, CO).
FHSP-W Part #108-208
Fishing Hot Spots Pro - WEST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the western United States. (WA, OR, CA, ID, NV, UT).
Fishing Hot Spots Pro Part #FHSP
Superbly-detailed electronic lake mapping without the necessity of using a computer. The
preloaded memory card contains superb coverage of over 1,300 of America’s premier inland
fishing lakes for one of four specific regions. All mapping includes depth contour lines and
excellent shoreline detail, while over 380 select lake charts provide added angler-helpful Fishing
Hot Spots® data and detail.
FreedomMaps Europe Part #FM Europe
Convenient plug-&-play maps include Eurpoean mapping information without the necessity of
using a computer. The preloaded memory card contains high-detail data for various European
countries and/or regions. Included is a floatable, waterproof card holder.
FreedomMaps USA EX Part #FM USA EX
Convenient plug-&-play maps include all features found on MapCreate USA Topo mapping
software without the necessity of using a computer. The preloaded memory card contains high-
detail data for one of five specific regions of the United States and includes topographical
information such as contour lines and elevations. Included is a floatable, waterproof card
holder.
Portable Accessories
PPP-16I Part #16-46
Ice fishing portable accessory pack. Includes ice fishing transducer, custom soft-side carry case,
battery and charger.
Power Cables & Adapters
CA-8 Part #119-10
Cigarette plug power cable.
PC-26BL Part #99-98
Power cable.
Protective Covers
CVR-2 Part #113-05
Lowrance protective cover for faceplate.
Speed/Temperature Sensors
SP-BL Part #99-96
Speed only sensor.
ST-TBL Part #99-97
Speed/temp probe.
TS-1BL Part #99-95
Temperature sensor.
Transducer Brackets
TMB-S Part #51-45
Plastic bracket adapts HS-WS transducer to trolling motor.
Transducer Extension Cables
XT-12BL Part #99-93
12' transducer extension cable.
XT-20BL Part #99-94
20' transducer extension cable.
Transducer Switch Boxes
SB-10BL Part #46-27
Switches 2 Sonar units between 1 Transducer.
SB-9BL Part #46-26
Switches 2 Transducers between 1 Sonar unit.
