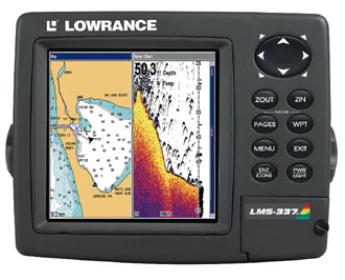

Lowrance LMS-337C DF Fish Finder Parts
Product Description:
Deep-sounding 50/200 kHz sonar to 2,500 feet and precision GPS+WAAS chart recorder with
super-sharp 480x480 pixel display and unique memory card versatility.

- High-detail 480V x 480H pixel screen resolution
- Resizeable windows and overlay data with choice of 4 data display sizes
- Depth penetration to 2,500 feet (760 m)
- 4,000 W peak-to-peak power
- Dual frequency 200/50 kHz Skimmer® transducer with built-in temp/speed/distance readings
- Precision 12-parallel channel GPS+WAAS receiver
- All-new, built-in, exclusive Lowrance background map with enhanced detail and nav aids
- One waterproof slot for digital media card (MMC/SD not included) to record graphs, GPS
details, and display optional custom mapping
- NMEA 2000 compatible for networking
- Sealed and waterproof
200 khz transducer
PDRT-WBL        Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)

Dual Frequency Transducer
HP-DFBL260        Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).

HST-DFSBL        Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)

Gimbal Brackets and In-Dash Mounting Kits
FM-5        Part #113-04
Flush mount kit.

GB-14        Part #101-99
Gimbal bracket.

GBSA-1        Part #51-83
Gimbal bracket swivel adapter.

MB-7        Part #101-62
R-A-M 1" ball mount bracket with arm and mounting plate.

Gimbal Knobs and Washers
GK-9        Part #101-80
Gimbal knobs.

Mapping
FHSP-E        Part #108-206
Fishing Hot Spots Pro - EAST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the eastern United States. (AL, FL, GA, OH, KY, TN, SC, NC, VA, WV, PA, NY,
NJ, MD, DE, CT, RI, MA, NH, VT, ME).

FHSP-N        Part #108-205
Fishing Hot Spots Pro - NORTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the northern United States. (ND, SD, MN, IA, WI, MI, IL, IN, MT, NE, WY).

FHSP-S        Part #108-207
Fishing Hot Spots Pro - SOUTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the southern United States. (KS, OK, NM, TX, MO, AR, LA, MS, AZ, CO).

FHSP-W        Part #108-208
Fishing Hot Spots Pro - WEST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the western United States. (WA, OR, CA, ID, NV, UT).

Fishing Hot Spots Pro        Part #FHSP
Superbly-detailed electronic lake mapping without the necessity of using a computer. The
preloaded memory card contains superb coverage of over 1,300 of America’s premier inland
fishing lakes for one of four specific regions. All mapping includes depth contour lines and
excellent shoreline detail, while over 380 select lake charts provide added angler-helpful Fishing
Hot Spots® data and detail.

FreedomMaps Europe        Part #FM Europe
Convenient plug-&-play maps include Eurpoean mapping information without the necessity of
using a computer. The preloaded memory card contains high-detail data for various European
countries and/or regions. Included is a floatable, waterproof card holder.

FreedomMaps World Reference Map        Part #FM World
Pre-loaded digital memory card featuring a medium-detail reference map of the world.

Power Cables & Adapters
CA-8        Part #119-10
Cigarette plug power cable.

PC-26BL        Part #99-98
Power cable.

Protective Covers
CVR-2        Part #113-05
Lowrance protective cover for faceplate.

Speed/Temperature Sensors
SP-BL        Part #99-96
Speed only sensor.

ST-TBL        Part #99-97
Speed/temp probe.

TS-1BL        Part #99-95
Temperature sensor.

Transducer Extension Cables
XT-12BL        Part #99-93
12' transducer extension cable.

XT-20BL        Part #99-94
20' transducer extension cable.

Transducer Switch Boxes
SB-10BL        Part #46-27
Switches 2 Sonar units between 1 Transducer.

SB-9BL        Part #46-26
Switches 2 Transducers between 1 Sonar unit.
