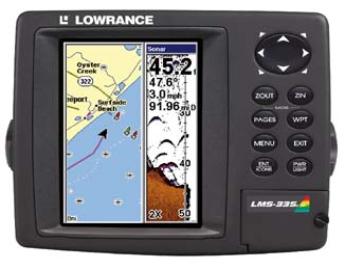

Lowrance LMS-335C DF Fish Finder Parts
Product Description:
Color recording, dual-frequency sonar with GPS+WAAS. 5" diagonal, 1/4 VGA, 256-color,
320x240 TFT display. 4000 watts peak-to-peak power. Designed for salt water or downrigger
tracking.
5.0" (12.7cm) diagonal 256-color, 1/4 VGA liquid crystal TFT display
High-detail 320V x 240H resolution
4,000 W peak-to-peak power
FishReveal™ and HyperScroll™ features
FlashGraf™ LCD flasher+sonar graph mode
Precision 12-parallel channel GPS+WAAS receiver
Color recording, dual-frequency sonar with GPS+WAAS. 5" diagonal, 1/4 VGA, 256-color,
320x240 TFT display. 4000 watts peak-to-peak power. Designed for salt water or downrigger
tracking.
5.0" (12.7cm) diagonal 256-color, 1/4 VGA liquid crystal TFT display
High-detail 320V x 240H resolution
4,000 W peak-to-peak power
FishReveal™ and HyperScroll™ features
FlashGraf™ LCD flasher+sonar graph mode
Precision 12-parallel channel GPS+WAAS receiver
200 khz transducer
PDRT-WBL Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)
Dual Frequency Transducer
HP-DFBL260 Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).
HST-DFSBL Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)
Gimbal Brackets and In-Dash Mounting Kits
MB-7 Part #101-62
R-A-M 1" ball mount bracket with arm and mounting plate.
Gimbal Knobs and Washers
GK-9 Part #101-80
Gimbal knobs.
Mapping
FreedomMaps World Reference Map Part #FM World
Pre-loaded digital memory card featuring a medium-detail reference map of the world.
Power Cables & Adapters
CA-8 Part #119-10
Cigarette plug power cable.
PC-26BL Part #99-98
Power cable.
Speed/Temperature Sensors
ST-TBL Part #99-97
Speed/temp probe.
Transducer Extension Cables
XT-12BL Part #99-93
12' transducer extension cable.
XT-20BL Part #99-94
20' transducer extension cable.
Transducer Switch Boxes
SB-10BL Part #46-27
Switches 2 Sonar units between 1 Transducer.
SB-9BL Part #46-26
Switches 2 Transducers between 1 Sonar unit.
PDRT-WBL Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)
Dual Frequency Transducer
HP-DFBL260 Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).
HST-DFSBL Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)
Gimbal Brackets and In-Dash Mounting Kits
MB-7 Part #101-62
R-A-M 1" ball mount bracket with arm and mounting plate.
Gimbal Knobs and Washers
GK-9 Part #101-80
Gimbal knobs.
Mapping
FreedomMaps World Reference Map Part #FM World
Pre-loaded digital memory card featuring a medium-detail reference map of the world.
Power Cables & Adapters
CA-8 Part #119-10
Cigarette plug power cable.
PC-26BL Part #99-98
Power cable.
Speed/Temperature Sensors
ST-TBL Part #99-97
Speed/temp probe.
Transducer Extension Cables
XT-12BL Part #99-93
12' transducer extension cable.
XT-20BL Part #99-94
20' transducer extension cable.
Transducer Switch Boxes
SB-10BL Part #46-27
Switches 2 Sonar units between 1 Transducer.
SB-9BL Part #46-26
Switches 2 Transducers between 1 Sonar unit.
