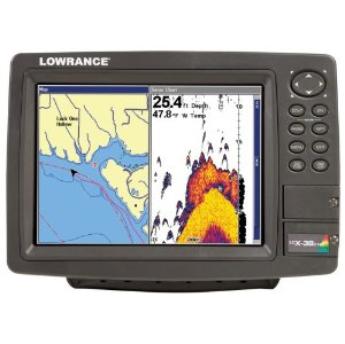

Lowrance LCX-38C HD Fish Finder Parts
Product Description:
Pro-grade Lowrance LCX-series electronics with an advanced 8.4” screen size choice! Features
larger 30GB internal hard drive preloaded with high-detail mapping/charts for coastal and inland
navigation in and around the U.S. and Hawaii.

# 30GB hard drive preloaded with tons of electronic charts and maps
# Precision 12-parallel channel GPS+WAAS receiver
# Lowrance radar compatible
# LowranceNET® networking (NMEA 2000® certification pending)
# High-speed ethernet connection links multiple Lowrance display units and modules to operate
independently on shared network data, including sonar
200 khz transducer
HST-WSBL        Part #106-72
Transom-mount, skimmer with built-in temperature sensor. (20 ft cable)

HS-WSBL        Part #106-71
Transom-mount, skimmer transducer. (20 ft cable)

PDRT-WBL        Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)

PDT-WBL        Part #106-74
Trolling motor-mount, pod type with built-in temperature sensor. (12 ft cable)

PD-WBL        Part #106-73
Trolling motor-mount or shoot-thru-hull, pod type transducer. (20 ft cable)

Dual Frequency Transducer
HP-DFBL260        Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).

HST-DFSBL        Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)

Ethernet
ETHEXT-15YL        Part #127-29
15ft Ethernet Cable

ETHEXT-25YL        Part #127-30
25FT Ethernet Cable

ETHEXT-50YL        Part #127-37
50ft Ethernet Cable

Navico Expansion Port-1        Part #132-031
Plug-and-play hub for high-speed data-sharing of multiple units. Enables sharing of sonar graph
even with GPS-only products. Compatible with all 2007 and later Lowrance models that have a
5-pin ethernet connector.

Gimbal Brackets and In-Dash Mounting Kits
GB-18        Part #113-75
Gimbal bracket.

Gimbal Knobs and Washers
GK-9        Part #101-80
Gimbal knobs.

GPS Module Accessory
LGC-4000        Part #000-0125-28
GPS Receiver. Comes with installation manual, 15ft NMEA 2000 cable, pole mount, NMEA 2000 T
connector, mounting hardware, & gasket seal.

LowranceNET Red
NMEA Starter Kit        Part #124-69
Network starter kit. Includes 2 terminating resistors (TR-120M-RD, TR-120F-RD), two
T-connectors (N2K-T-RD), one 2 ft extension cable (N2KEXT-2RD), and one 15 ft extension
cable (N2KEXT-15RD), and a power node (N2K-PWR-RD). For use with all Red network devices.

Mapping
FHSP-E        Part #108-206
Fishing Hot Spots Pro - EAST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the eastern United States. (AL, FL, GA, OH, KY, TN, SC, NC, VA, WV, PA, NY,
NJ, MD, DE, CT, RI, MA, NH, VT, ME).

FHSP-N        Part #108-205
Fishing Hot Spots Pro - NORTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the northern United States. (ND, SD, MN, IA, WI, MI, IL, IN, MT, NE, WY).

FHSP-S        Part #108-207
Fishing Hot Spots Pro - SOUTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the southern United States. (KS, OK, NM, TX, MO, AR, LA, MS, AZ, CO).

FHSP-W        Part #108-208
Fishing Hot Spots Pro - WEST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the western United States. (WA, OR, CA, ID, NV, UT).

FreedomMaps Europe        Part #FM Europe
Convenient plug-&-play maps include Eurpoean mapping information without the necessity of
using a computer. The preloaded memory card contains high-detail data for various European
countries and/or regions. Included is a floatable, waterproof card holder.

FreedomMaps USA EX        Part #FM USA EX
Convenient plug-&-play maps include all features found on MapCreate USA Topo mapping
software without the necessity of using a computer. The preloaded memory card contains
high-detail data for one of five specific regions of the United States and includes topographical
information such as contour lines and elevations. Included is a floatable, waterproof card holder.

Power Cables & Adapters
PC-27BL        Part #127-08
Power Cable.

Protective Covers
CVR-10        Part #124-33
Protective cover.

Speed/Temperature Sensors
SP-BL        Part #99-96
Speed only sensor.

ST-TBL        Part #99-97
Speed/temp probe.

TS-1BL        Part #99-95
Temperature sensor.

Transducer Extension Cables
XT-12BL        Part #99-93
12' transducer extension cable.

XT-20BL        Part #99-94
20' transducer extension cable.

Transducer Switch Boxes
SB-10BL        Part #46-27
Switches 2 Sonar units between 1 Transducer.

SB-9BL        Part #46-26
Switches 2 Transducers between 1 Sonar unit.
