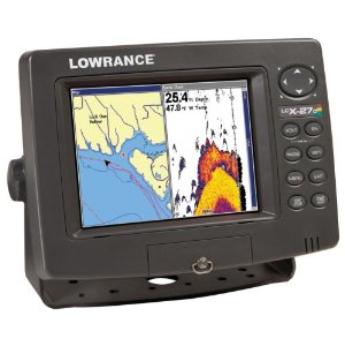

Lowrance LCX-27C Fish Finder Parts
Product Description:
Delivers a brilliant 7” diag. TFT color display, and sonar/GPS chartplotter performance. Features
expanded built-in background map of the continental U.S. and Hawaii with over 3,000 lakes with
depth contours. Waterproof memory card slots are compatible with a superb variety of high-
detail, plug-&-play electronic chart options loaded on MMC/SD cards.
* Precision 12-parallel channel GPS+WAAS receiver
* Lowrance radar compatible
* LowranceNET® networking (NMEA 2000® certification pending)
* High-speed ethernet connection links multiple Lowrance display units and modules to
operate independently on shared network data, including sonar
Delivers a brilliant 7” diag. TFT color display, and sonar/GPS chartplotter performance. Features
expanded built-in background map of the continental U.S. and Hawaii with over 3,000 lakes with
depth contours. Waterproof memory card slots are compatible with a superb variety of high-
detail, plug-&-play electronic chart options loaded on MMC/SD cards.
* Precision 12-parallel channel GPS+WAAS receiver
* Lowrance radar compatible
* LowranceNET® networking (NMEA 2000® certification pending)
* High-speed ethernet connection links multiple Lowrance display units and modules to
operate independently on shared network data, including sonar
200 khz transducer
HST-WSBL Part #106-72
Transom-mount, skimmer with built-in temperature sensor. (20 ft cable)
HS-WSBL Part #106-71
Transom-mount, skimmer transducer. (20 ft cable)
PDRT-WBL Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)
PDT-WBL Part #106-74
Trolling motor-mount, pod type with built-in temperature sensor. (12 ft cable)
PD-WBL Part #106-73
Trolling motor-mount or shoot-thru-hull, pod type transducer. (20 ft cable)
Dual Frequency Transducer
HP-DFBL260 Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).
HST-DFSBL Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)
Ethernet
ETHEXT-15YL Part #127-29
15ft Ethernet Cable
ETHEXT-25YL Part #127-30
25FT Ethernet Cable
ETHEXT-50YL Part #127-37
50ft Ethernet Cable
Navico Expansion Port-1 Part #132-031
Plug-and-play hub for high-speed data-sharing of multiple units. Enables sharing of sonar graph
even with GPS-only products. Compatible with all 2007 and later Lowrance models that have a
5-pin ethernet connector.
Gimbal Brackets and In-Dash Mounting Kits
GB-18 Part #113-75
Gimbal bracket.
Gimbal Knobs and Washers
GK-9 Part #101-80
Gimbal knobs.
Mapping
FHSP-E Part #108-206
Fishing Hot Spots Pro - EAST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the eastern United States. (AL, FL, GA, OH, KY, TN, SC, NC, VA, WV, PA, NY,
NJ, MD, DE, CT, RI, MA, NH, VT, ME).
FHSP-N Part #108-205
Fishing Hot Spots Pro - NORTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the northern United States. (ND, SD, MN, IA, WI, MI, IL, IN, MT, NE, WY).
FHSP-S Part #108-207
Fishing Hot Spots Pro - SOUTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the southern United States. (KS, OK, NM, TX, MO, AR, LA, MS, AZ, CO).
FHSP-W Part #108-208
Fishing Hot Spots Pro - WEST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the western United States. (WA, OR, CA, ID, NV, UT).
FreedomMaps Europe Part #FM Europe
Convenient plug-&-play maps include Eurpoean mapping information without the necessity of
using a computer. The preloaded memory card contains high-detail data for various European
countries and/or regions. Included is a floatable, waterproof card holder.
FreedomMaps USA EX Part #FM USA EX
Convenient plug-&-play maps include all features found on MapCreate USA Topo mapping
software without the necessity of using a computer. The preloaded memory card contains
high-detail data for one of five specific regions of the United States and includes topographical
information such as contour lines and elevations. Included is a floatable, waterproof card holder.
Power Cables & Adapters
PC-27BL Part #127-08
Power Cable.
Protective Covers
CVR-1 Part #101-82
Lowrance white protective cover.
Speed/Temperature Sensors
SP-BL Part #99-96
Speed only sensor.
ST-TBL Part #99-97
Speed/temp probe.
TS-1BL Part #99-95
Temperature sensor.
Transducer Extension Cables
XT-12BL Part #99-93
12' transducer extension cable.
XT-20BL Part #99-94
20' transducer extension cable.
Transducer Switch Boxes
SB-10BL Part #46-27
Switches 2 Sonar units between 1 Transducer.
SB-9BL Part #46-26
Switches 2 Transducers between 1 Sonar unit.
HST-WSBL Part #106-72
Transom-mount, skimmer with built-in temperature sensor. (20 ft cable)
HS-WSBL Part #106-71
Transom-mount, skimmer transducer. (20 ft cable)
PDRT-WBL Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)
PDT-WBL Part #106-74
Trolling motor-mount, pod type with built-in temperature sensor. (12 ft cable)
PD-WBL Part #106-73
Trolling motor-mount or shoot-thru-hull, pod type transducer. (20 ft cable)
Dual Frequency Transducer
HP-DFBL260 Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).
HST-DFSBL Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)
Ethernet
ETHEXT-15YL Part #127-29
15ft Ethernet Cable
ETHEXT-25YL Part #127-30
25FT Ethernet Cable
ETHEXT-50YL Part #127-37
50ft Ethernet Cable
Navico Expansion Port-1 Part #132-031
Plug-and-play hub for high-speed data-sharing of multiple units. Enables sharing of sonar graph
even with GPS-only products. Compatible with all 2007 and later Lowrance models that have a
5-pin ethernet connector.
Gimbal Brackets and In-Dash Mounting Kits
GB-18 Part #113-75
Gimbal bracket.
Gimbal Knobs and Washers
GK-9 Part #101-80
Gimbal knobs.
Mapping
FHSP-E Part #108-206
Fishing Hot Spots Pro - EAST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the eastern United States. (AL, FL, GA, OH, KY, TN, SC, NC, VA, WV, PA, NY,
NJ, MD, DE, CT, RI, MA, NH, VT, ME).
FHSP-N Part #108-205
Fishing Hot Spots Pro - NORTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the northern United States. (ND, SD, MN, IA, WI, MI, IL, IN, MT, NE, WY).
FHSP-S Part #108-207
Fishing Hot Spots Pro - SOUTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the southern United States. (KS, OK, NM, TX, MO, AR, LA, MS, AZ, CO).
FHSP-W Part #108-208
Fishing Hot Spots Pro - WEST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the western United States. (WA, OR, CA, ID, NV, UT).
FreedomMaps Europe Part #FM Europe
Convenient plug-&-play maps include Eurpoean mapping information without the necessity of
using a computer. The preloaded memory card contains high-detail data for various European
countries and/or regions. Included is a floatable, waterproof card holder.
FreedomMaps USA EX Part #FM USA EX
Convenient plug-&-play maps include all features found on MapCreate USA Topo mapping
software without the necessity of using a computer. The preloaded memory card contains
high-detail data for one of five specific regions of the United States and includes topographical
information such as contour lines and elevations. Included is a floatable, waterproof card holder.
Power Cables & Adapters
PC-27BL Part #127-08
Power Cable.
Protective Covers
CVR-1 Part #101-82
Lowrance white protective cover.
Speed/Temperature Sensors
SP-BL Part #99-96
Speed only sensor.
ST-TBL Part #99-97
Speed/temp probe.
TS-1BL Part #99-95
Temperature sensor.
Transducer Extension Cables
XT-12BL Part #99-93
12' transducer extension cable.
XT-20BL Part #99-94
20' transducer extension cable.
Transducer Switch Boxes
SB-10BL Part #46-27
Switches 2 Sonar units between 1 Transducer.
SB-9BL Part #46-26
Switches 2 Transducers between 1 Sonar unit.
