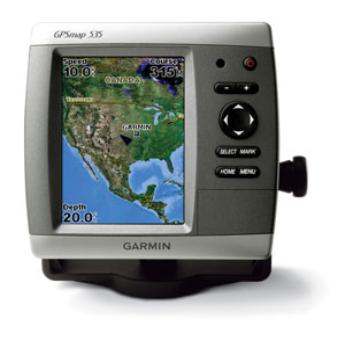

Garmin GPSMAP 535 Chartplotter/Fish Finder Parts
Product Description:
This freshwater chartplotter boasts the brightest, sharpest, most colorful graphics you’ve ever
seen on a 5-inch screen. The GPSMAP 535 has a 5” VGA display; preloaded, detailed maps of U.
S. inland lakes; and simple, straightforward buttons and menus. You can add the optional
BlueChart g2 Vision SD™ card for even more enhanced features.
Navigate the Lake
The 535 comes preloaded with detailed maps for U.S. inland lakes, including 5300 lakes with
shoreline, depth contours, navaids, and more. Over 300 of these lakes are enhanced with extra
Inland Lakes Vision features (see below). For areas outside the U.S., the 535 has a worldwide
basemap with satellite images in place of more traditional maps. The SD card slot makes it easy
to add additional maps without connecting to a computer. And with a simple, intuitive interface
and high-speed processor, the 535 makes navigating easy.
The 535 boasts advanced Inland Lakes Vision features for 300 of the most popular lakes.
* MarinerEye view and FishEye view provide you a 3-dimensional perspective of map
information, both above and below the waterline.
* Higher-resolution satellite images help you orient yourself in unfamiliar areas.
* Auto guidance technology searches through map data to suggest the best passage.
This freshwater chartplotter boasts the brightest, sharpest, most colorful graphics you’ve ever
seen on a 5-inch screen. The GPSMAP 535 has a 5” VGA display; preloaded, detailed maps of U.
S. inland lakes; and simple, straightforward buttons and menus. You can add the optional
BlueChart g2 Vision SD™ card for even more enhanced features.
Navigate the Lake
The 535 comes preloaded with detailed maps for U.S. inland lakes, including 5300 lakes with
shoreline, depth contours, navaids, and more. Over 300 of these lakes are enhanced with extra
Inland Lakes Vision features (see below). For areas outside the U.S., the 535 has a worldwide
basemap with satellite images in place of more traditional maps. The SD card slot makes it easy
to add additional maps without connecting to a computer. And with a simple, intuitive interface
and high-speed processor, the 535 makes navigating easy.
The 535 boasts advanced Inland Lakes Vision features for 300 of the most popular lakes.
* MarinerEye view and FishEye view provide you a 3-dimensional perspective of map
information, both above and below the waterline.
* Higher-resolution satellite images help you orient yourself in unfamiliar areas.
* Auto guidance technology searches through map data to suggest the best passage.
Works with:
Mounts
Flush Mounting Kit
010-10447-05
Marine swivel mounting bracket (replacement)
010-10921-00
2nd Mounting station
010-10930-00
Cables
XM cable
010-10919-00
Chartplotter Power/Data Cable
010-10917-00
Fishfinder/sounder Power/data Cable
010-10918-00
Cases and Covers
Protective cover (replacement)
010-10912-00
Antennas
GXM™ 31
010-00463-00
GA 30 GPS Antenna
010-00872-00
Software
Chartplotter Update on SD™ card
010-00427-05
Transducers
Thru-hull Mount Transducer (1 kW, 200/50 kHz)
010-11010-01
Thru-hull Mount Transducer (1 kW, 200/50 kHz)
010-11010-00
Acc,Xdcr,1kW,Thru,B258,Xdcr ID
010-10703-00
Thru-hull Mount with Depth, Temperature and Fairing
010-10451-00
Speed Sensor
010-10279-01
In-hull Mount Transducer (200/50 kHz, 12/45 deg)
010-10327-00
Thru hull mount, plastic, temp & speed only
010-10365-00
Transducer Extension Cable (10 ft)
010-10715-00
Transducer Extension Cable (20 ft)
010-10716-00
Thru-hull Mount Transducer with Depth and Temperature
010-10194-01
Thru-hull Mount Transducer with Depth and Temperature (200/50 kHz)
010-10182-01
Transom Mount with Depth, Temperature and Speed
010-10192-01
Thru-hull Mount (200/50 kHz, 12/45 deg)
010-10194-00
200/50KHz, 12/45deg, bronze, thru-hull mount/long stem w/depth, temp and speed, incl. fairing
010-10193-01
200/50KHz, 12/45deg, bronze, thru-hull mount, depth
010-10182-00
200KHz, 20deg, plastic, transom mount, depth
010-10105-00
Transom Mount Transducer with Depth, Temperature and Speed (200 kHz, 20 deg)
010-10106-00
Thru-hull Mount Transducer with Depth (200 kHz, 12 deg)
010-10107-00
Transom Mount with Depth and Temperature (200/50 kHz, 10/40 deg)
010-10272-00
Trolling motor transducer adapter
010-10251-00
Dual Beam Transom Mount with Depth and Temperature (200 kHz, 45/15 deg)
010-10249-00
Temperature probe
010-10225-00
200KHz, 14 deg, plastic, in-hull mount, depth
010-10224-00
200KHz, 12deg, plastic, thru-hull mount, depth, temp
010-10218-00
200KHz, 14deg, plastic, trolling motor, depth, temp
010-10200-00
Other
Weather Cap (NMEA 0183 Cable)
010-10817-02
CAN Kit
010-10742-00
