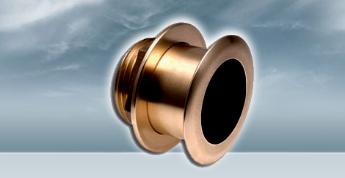

Furuno 526TID-LTD/20 Thru-Hull Fish Finder Transducer
Product Description
Airmar B164 Housing Style Transducer
If a thru-hull flush-style transducer is called for, the Tilted Element 526TID-LTD/20 is right for
hulls with a deadrise angle of between 16° and 24°. This transducer compensates for deadrise
by angling the element inside the housing.
The transducer is labeled with an arrow on top of the housing that should point towards the keel,
whether it is installed to port or starboard. This ensures that the tilted element within the housing
is given the correct orientation.
Standard Features
# 1kW
# 50/200 kHz
# 20/6 degree Beam Angles
# Bronze Thru Hull with Temperature
# 30 Foot Cable with 10-Pin Connector
Airmar B164 Housing Style Transducer
If a thru-hull flush-style transducer is called for, the Tilted Element 526TID-LTD/20 is right for
hulls with a deadrise angle of between 16° and 24°. This transducer compensates for deadrise
by angling the element inside the housing.
The transducer is labeled with an arrow on top of the housing that should point towards the keel,
whether it is installed to port or starboard. This ensures that the tilted element within the housing
is given the correct orientation.
Standard Features
# 1kW
# 50/200 kHz
# 20/6 degree Beam Angles
# Bronze Thru Hull with Temperature
# 30 Foot Cable with 10-Pin Connector
Works with the following fish finders:
