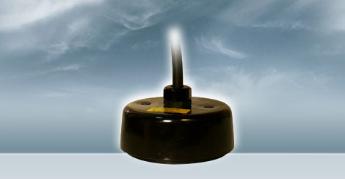

Furuno CA82B-35R External Fish Finder Transducer
Product Description
The CA82B-35R is a new transducer with a wide bandwidth of 65kHz-110kHz, and is useable with
the FCV295, FCV292*, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3. When used with the
FCV1100/1200, sensitivity remains high even if the frequency is shifted +/- 10% to suppress
interference.
The CA82B-35R may be installed in the tank of the CA88B-10 or CA100B-10R. When retrofitting
these or other transducers, the directional pattern and sidelobe characteristics of the beam will
be different, and therefore the sounder image may differ from previous installations.
* 2 kW
* Selectable frequency - 65kHz to 110kHz
* Beam angle becomes sharper at higher frequencies:
o 68kHz = 12.5 degrees
o 88kHz = 9.6 degrees
o 107kHz = 7.7 degrees
* Rugged FRP construction - tank mounted
* 15 meter cable, no connector provided
The CA82B-35R is a new transducer with a wide bandwidth of 65kHz-110kHz, and is useable with
the FCV295, FCV292*, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3. When used with the
FCV1100/1200, sensitivity remains high even if the frequency is shifted +/- 10% to suppress
interference.
The CA82B-35R may be installed in the tank of the CA88B-10 or CA100B-10R. When retrofitting
these or other transducers, the directional pattern and sidelobe characteristics of the beam will
be different, and therefore the sounder image may differ from previous installations.
* 2 kW
* Selectable frequency - 65kHz to 110kHz
* Beam angle becomes sharper at higher frequencies:
o 68kHz = 12.5 degrees
o 88kHz = 9.6 degrees
o 107kHz = 7.7 degrees
* Rugged FRP construction - tank mounted
* 15 meter cable, no connector provided
Works with the following fish finders:
