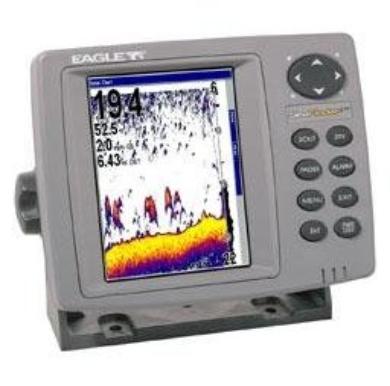

Eagle SeaFinder 640C DF Fish Finder
Product Description
Amazing, high-definition, 640Vx480H pixel, 256-color, sunlight-viewable TFT display! Deep
operation. Includes water temp/trolling speed/distance readings!
Display:
* Ultra-bright, 5" (12.7 cm) diagonal screen
* 256-color, active matrix TFT LCD
* High-definition 640Vx480H resolution
* Fluorescent cold-cathode backlit screen and keypad
* Unique Resize Window to adjust split-screen display
* Overlay Data feature displays select digital readings over the sonar graph
Sonar:
* Depth capability to 1500 ft* (457 m) with 4000 watts of peak-to-peak power (500W RMS) at
50kHz
* High-performance, low-profile 50/200 kHz Skimmer® dual-frequency transducer with built-in
temp sensor delivers an extra wide angle of fish detection area with high sensitivity settings -
Operates at boat speeds up to 70 mph (61 kts) - Variety of other transducer purchase
options available
* SP-U transom-mount sensor included for precise trolling speed/distance log readings
* Adjustable ping speed with automatic HyperScroll™ to display fish targets at higher boat
speeds
* Choice of six color display modes to match outdoor light conditions, and to help reveal fish
hidden in underwater cover
* FasTrack™ vertical bar flasher displays real-time sonar returns and relative strength of each
target
* Advanced Signal Processing (ASP™) automatically adjusts your settings for the best sonar
* COLORLINE™ separates fish from nearby structure and bottom, and helps define bottom
composition and hardness
* Advanced Fish I.D.™ shows underwater targets in different sizes of fish symbols
* FishTrack™ displays target depth readings above fish symbols
Amazing, high-definition, 640Vx480H pixel, 256-color, sunlight-viewable TFT display! Deep
operation. Includes water temp/trolling speed/distance readings!
Display:
* Ultra-bright, 5" (12.7 cm) diagonal screen
* 256-color, active matrix TFT LCD
* High-definition 640Vx480H resolution
* Fluorescent cold-cathode backlit screen and keypad
* Unique Resize Window to adjust split-screen display
* Overlay Data feature displays select digital readings over the sonar graph
Sonar:
* Depth capability to 1500 ft* (457 m) with 4000 watts of peak-to-peak power (500W RMS) at
50kHz
* High-performance, low-profile 50/200 kHz Skimmer® dual-frequency transducer with built-in
temp sensor delivers an extra wide angle of fish detection area with high sensitivity settings -
Operates at boat speeds up to 70 mph (61 kts) - Variety of other transducer purchase
options available
* SP-U transom-mount sensor included for precise trolling speed/distance log readings
* Adjustable ping speed with automatic HyperScroll™ to display fish targets at higher boat
speeds
* Choice of six color display modes to match outdoor light conditions, and to help reveal fish
hidden in underwater cover
* FasTrack™ vertical bar flasher displays real-time sonar returns and relative strength of each
target
* Advanced Signal Processing (ASP™) automatically adjusts your settings for the best sonar
* COLORLINE™ separates fish from nearby structure and bottom, and helps define bottom
composition and hardness
* Advanced Fish I.D.™ shows underwater targets in different sizes of fish symbols
* FishTrack™ displays target depth readings above fish symbols
200 khz transducer
PDT-WSU Part #000-0106-50
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)
Dual Frequency Transducer
HST-50/200-WSU Part #106-49
Transom-mount, dual frequency skimmer with built in temperature sensor (50 kHz 35 degree &
200 kHz 12 degree). Includes power cable. (25 ft cable) CAN BE USED WITH X67C, M68C AND
FISHEASY 320C FOR DEEPWATER/SALTWATER APPLICATIONS
Gimbal Brackets and In-Dash Mounting Kits
FM-5 Part #113-04
Flush mount kit.
GB-14 Part #101-99
Gimbal bracket.
GBSA-1 Part #51-83
Gimbal bracket swivel adapter.
Gimbal Knobs and Washers
GK-9 Part #101-80
Gimbal knobs.
Speed/Temperature Sensors
ST-TU Part #99-75
Speed/temp probe.
TS-2U Part #99-77
Temperature probe for Temp 2.
Transducer Adapter Cables
TA-BL2U Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.
TA-X2U Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.
PDT-WSU Part #000-0106-50
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)
Dual Frequency Transducer
HST-50/200-WSU Part #106-49
Transom-mount, dual frequency skimmer with built in temperature sensor (50 kHz 35 degree &
200 kHz 12 degree). Includes power cable. (25 ft cable) CAN BE USED WITH X67C, M68C AND
FISHEASY 320C FOR DEEPWATER/SALTWATER APPLICATIONS
Gimbal Brackets and In-Dash Mounting Kits
FM-5 Part #113-04
Flush mount kit.
GB-14 Part #101-99
Gimbal bracket.
GBSA-1 Part #51-83
Gimbal bracket swivel adapter.
Gimbal Knobs and Washers
GK-9 Part #101-80
Gimbal knobs.
Speed/Temperature Sensors
ST-TU Part #99-75
Speed/temp probe.
TS-2U Part #99-77
Temperature probe for Temp 2.
Transducer Adapter Cables
TA-BL2U Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.
TA-X2U Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.
