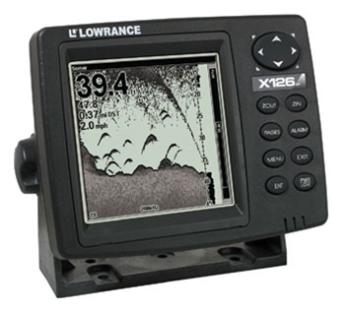

Lowrance X126 DF Fish Finder Parts
Product Description:
Features of Lowrance - X126 DF Dual Frequency - Marine Full Size Sonar Fishfinders - 117-08

* Film SuperTwist display with 16 level gray scale
* Dual-frequency 50/200 kHz Skimmer® transducer with temperature sensor
* Enhanced receiver for shallow/deep water sonar perfomance
* Speed/distance sensor
* Sharp 5" (12.7 cm) diagonal high-contrast Film SuperTwist LCD
* 480V x 480H resolution
* Newly-advanced amber LED backlit screen and keypad
* 16-level grayscale
* 4 background gray tone choices

Performance Features of Lowrance X126 DF Dual Frequency Sonar- 117-08

* Depth penetration to 1,700 feet* (518 m)
* 4,000 W peak-to-peak power
* Dual frequency 200/50 kHz Skimmer transducer with built-in temp/speed/distance readings
* FlashGraf™ LCD flasher+sonar graph with GRAYLINE
* Adjustable ping speed automatically engages HyperScroll™ for locating fish targets at higher
boat speeds
* FasTrack™ vertical flasher bar
* Overlay data
* Standard sonar features - Advanced Signal Processing (ASP™), GRAYLINE, Advanced Fish
Symbol I.D.™, FishTrack™, multi-zoom options, sonar alarms, backup memory, and more
200 khz transducer
PDRT-WBL        Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)

THST-DFBL        Part #106-79
Thru-hull-mount, dual frequency bronze housing transducer with built-in speed and temperature
sensor. Includes faring block.

Dual Frequency Transducer
HP-DFBL260        Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).

HST-DFSBL        Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)

Gimbal Brackets and In-Dash Mounting Kits
FM-5        Part #113-04
Flush mount kit.

GB-14        Part #101-99
Gimbal bracket.

GBSA-1        Part #51-83
Gimbal bracket swivel adapter.

Gimbal Knobs and Washers
GK-9        Part #101-80
Gimbal knobs.

Power Cables & Adapters
PC-26BL        Part #99-98
Power cable.

Protective Covers
CVR-2        Part #113-05
Lowrance protective cover for faceplate.

Speed/Temperature Sensors
SP-BL        Part #99-96
Speed only sensor.

ST-TBL        Part #99-97
Speed/temp probe.

TS-1BL        Part #99-95
Temperature sensor.

Transducer Extension Cables
XT-12BL        Part #99-93
12' transducer extension cable.

XT-20BL        Part #99-94
20' transducer extension cable.

Transducer Switch Boxes
SB-10BL        Part #46-27
Switches 2 Sonar units between 1 Transducer.

SB-9BL        Part #46-26
Switches 2 Transducers between 1 Sonar unit.
