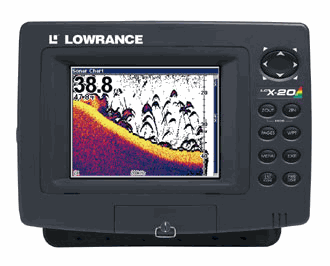

Lowrance LCX-20C Fish Finder Parts
A remarkable display at a remarkable price. This color sonar/GPS+WAAS is an outstanding
performer and has all the professional features. The LCX-20C includes a 6" diagonal liquid
crystal TFT display with a 240V x 320H resolution. Available in dual- and single-frequency
options, and with or without a GPS+WAAS antenna.
* Large 6" (15.2 cm) diagonal 256-color, VGA TFT display
* Incredible 320 x 240 resolution
* Precision 12-parallel channel GPS+WAAS receiver
200 khz transducer
HST-WSBL Part #106-72
Transom-mount, skimmer with built-in temperature sensor. (20 ft cable)
HS-WSBL Part #106-71
Transom-mount, skimmer transducer. (20 ft cable)
PDRT-WBL Part #106-89
Shoot-thru-hull mount, 20 degree pod type with remote temperature (200 kHz). (20 ft cable)
PDT-WBL Part #106-74
Trolling motor-mount, pod type with built-in temperature sensor. (12 ft cable)
PD-WBL Part #106-73
Trolling motor-mount or shoot-thru-hull, pod type transducer. (20 ft cable)
Dual Frequency Transducer
HP-DFBL260 Part #106-82
Thru-hull-mount, dual frequency bronze housing, high-power multiple element (50 kHz 19 degree
& 200 kHz 6 degree).
HST-DFSBL Part #106-77
Transom-mount, dual frequency skimmer with built-in temperature sensor. (25 ft cable)
M260 In-Hull Transducer Part #106-91
50/200 kHz, 1kW RMS. Separate elements for exceptional deep water performance and detail.
Gimbal Brackets and In-Dash Mounting Kits
GB-18 Part #113-75
Gimbal Knobs and Washers
GK-9 Part #101-80
FHSP-E Part #108-206
Fishing Hot Spots Pro - EAST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the eastern United States. (AL, FL, GA, OH, KY, TN, SC, NC, VA, WV, PA, NY,
NJ, MD, DE, CT, RI, MA, NH, VT, ME).
FHSP-N Part #108-205
Fishing Hot Spots Pro - NORTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the northern United States. (ND, SD, MN, IA, WI, MI, IL, IN, MT, NE, WY).
FHSP-S Part #108-207
Fishing Hot Spots Pro - SOUTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the southern United States. (KS, OK, NM, TX, MO, AR, LA, MS, AZ, CO).
FHSP-W Part #108-208
Fishing Hot Spots Pro - WEST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the western United States. (WA, OR, CA, ID, NV, UT).
Fishing Hot Spots Pro Part #FHSP
Superbly-detailed electronic lake mapping without the necessity of using a computer. The
preloaded memory card contains superb coverage of over 1,300 of America’s premier inland
fishing lakes for one of four specific regions. All mapping includes depth contour lines and
excellent shoreline detail, while over 380 select lake charts provide added angler-helpful Fishing
Hot Spots® data and detail.
FreedomMaps Europe Part #FM Europe
Convenient plug-&-play maps include Eurpoean mapping information without the necessity of
using a computer. The preloaded memory card contains high-detail data for various European
countries and/or regions. Included is a floatable, waterproof card holder.
FreedomMaps World Reference Map Part #FM World
Pre-loaded digital memory card featuring a medium-detail reference map of the world.
Power Cables & Adapters
CA-8 Part #119-10
Cigarette plug power cable.
PC-26BL Part #99-98
CVR-1 Part #101-82
Lowrance white protective cover.
SP-BL Part #99-96
Speed only sensor.
ST-TBL Part #99-97
TS-1BL Part #99-95
Transducer Extension Cables
XT-12BL Part #99-93
12' transducer extension cable.
XT-20BL Part #99-94
20' transducer extension cable.
Transducer Switch Boxes
SB-10BL Part #46-27
Switches 2 Sonar units between 1 Transducer.
SB-9BL Part #46-26
Switches 2 Transducers between 1 Sonar unit.
