Lowrance HDS-7M Fish Finder Parts

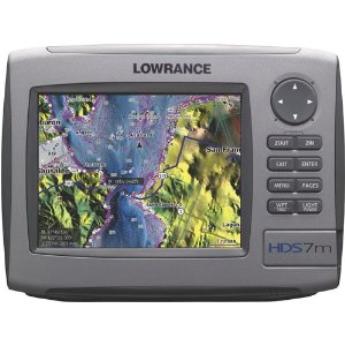

Product Description:
Enjoy big performance and color detail in this large-but-compact system with a 6.4”/16.3 cm full
VGA color display, with the sunlight and wide-angle viewability of the new SolarMAX™ PLUS
screen technologies. With rocker arrow keys and single keypad and SD card slot.
Gimbal Brackets and In-Dash Mounting Kits
FM-12        Part #124-65
Flush-Mount Kit for all HDS units.

GB-20        Part #124-58
Gimbal Bracket for HDS-7 units.

MB-35        Part #000-0124-74
RAM swing arm mounting bracket with 8" arm for 5"-8" HDS units.

GPS Module Accessory
LGC-4000        Part #000-0125-28
GPS Receiver. Comes with installation manual, 15ft NMEA 2000 cable, pole mount, NMEA 2000 T
connector, mounting hardware, & gasket seal.

LowranceNET Red
NMEA Starter Kit        Part #124-69
Network starter kit. Includes 2 terminating resistors (TR-120M-RD, TR-120F-RD), two
T-connectors (N2K-T-RD), one 2 ft extension cable (N2KEXT-2RD), and one 15 ft extension
cable (N2KEXT-15RD), and a power node (N2K-PWR-RD). For use with all Red network devices.
Power Cables & Adapters
CA-8        Part #119-10
Cigarette plug power cable.

PC-30        Part #127-49
Power Cable for all HDS units.

Protective Covers
CAP-1        Part #000-0124-70
Set of connector caps for HDS units.

CVR-13        Part #124-62
Protective Cover for HDS-7 units.

Transducer Switch Boxes
SB-10BL        Part #46-27
Switches 2 Sonar units between 1 Transducer.

SB-9BL        Part #46-26
Switches 2 Transducers between 1 Sonar unit.
