Lowrance HDS-5M Fish Finder Parts
Product Description:

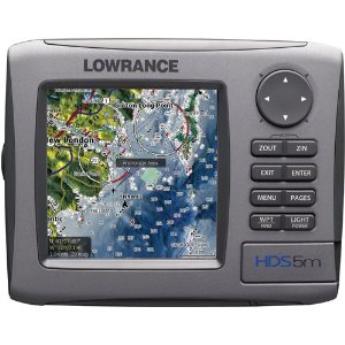

This excellent space-saving choice in the new HDS line of performance multifunction chartplotters
is the ideal choice for installation on smaller boats. Its exclusive, high-resolution 5”/12.7 cm 16-bit
color SolarMAX™ PLUS display with adjustable backlighting makes it a viewing wonder, day or

To precisely find your way, a new high-sensitivity 16-channel GPS+WAAS (GPS+EGNOS+MSAS
for non-Americas) antenna is built-in.

The amazing new Nautic Insight™ cartography, with life-like views of underwater topography, is
also built in to enhance boating for Americas market - non-Americas will have the Navionics
World Background map preloaded. Plus, this HDS is now fully compatible with all Navionics®
chartcards – Platinum+, Platinum, Platinum HotMaps – with one high-speed SD card slots.
Gimbal Brackets and In-Dash Mounting Kits
FM-12        Part #124-65
Flush-Mount Kit for all HDS units.

GB-19        Part #124-57
Gimbal Bracket for HDS-5 Units. Includes gimbal knobs.

MB-35        Part #000-0124-74
RAM swing arm mounting bracket with 8" arm for 5"-8" HDS units.

GPS Module Accessory
LGC-4000        Part #000-0125-28
GPS Receiver. Comes with installation manual, 15ft NMEA 2000 cable, pole mount, NMEA 2000 T
connector, mounting hardware, & gasket seal.

LowranceNET Red
NMEA Starter Kit        Part #124-69
Network starter kit. Includes 2 terminating resistors (TR-120M-RD, TR-120F-RD), two
T-connectors (N2K-T-RD), one 2 ft extension cable (N2KEXT-2RD), and one 15 ft extension
cable (N2KEXT-15RD), and a power node (N2K-PWR-RD). For use with all Red network devices.
Power Cables & Adapters
CA-8        Part #119-10
Cigarette plug power cable.

PC-30        Part #127-49
Power Cable for all HDS units.

Protective Covers
CAP-1        Part #000-0124-70
Set of connector caps for HDS units.

CVR-12        Part #124-61
Protective Cover for HDS-5 units.

Transducer Switch Boxes
SB-10BL        Part #46-27
Switches 2 Sonar units between 1 Transducer.

SB-9BL        Part #46-26
Switches 2 Transducers between 1 Sonar unit.
