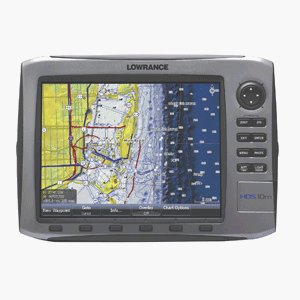

Lowrance HDS-10M Fish Finder Parts
Product Description:
Lowrance presents a new dimension in multifunction chartplotters with large-scale, high-definition
10.4”/26.4 cm Super VGA color viewing. The new SolarMAX™ PLUS display renders brilliant
detail in sunlight with the best wide-angle viewing ever available, while advanced pure-white LED
screen/keypad backlighting.

A unique new FlyWheel™ dial and command soft keys give you control with the greatest of ease
and speed, and to precisely guide your way, a new super-sensitive 16-channel GPS+WAAS
antenna (GPS+EGNOS+MSAS for non-Americas) is built right in.

Also inside is the amazing, life-like and exclusive Insight USA™ (Navionics World Background
map for non-Americas) cartography to enhance your on-water navigation for both Inland lakes
and Coastal waters. Plus, this HDS is now fully compatible with all Navionics® chartcards –
Platinum+, Platinum, Platinum HotMaps – with two high-speed SD card slots.
Gimbal Brackets and In-Dash Mounting Kits
FM-12        Part #124-65
Flush-Mount Kit for all HDS units.

GB-22        Part #124-60
Gimbal Bracket for HDS-10 units.

MB-36        Part #000-0124-75
RAM heavy duty 2-1/4" ball mounting bracket with short arm for 10" HDS units.

MB-38        Part #124-77
Heavy Duty RAM Mount.

GPS Module Accessory
LGC-4000        Part #000-0125-28
GPS Receiver. Comes with installation manual, 15ft NMEA 2000 cable, pole mount, NMEA 2000 T
connector, mounting hardware, & gasket seal.

LowranceNET Red
NMEA Starter Kit        Part #124-69
Network starter kit. Includes 2 terminating resistors (TR-120M-RD, TR-120F-RD), two
T-connectors (N2K-T-RD), one 2 ft extension cable (N2KEXT-2RD), and one 15 ft extension
cable (N2KEXT-15RD), and a power node (N2K-PWR-RD). For use with all Red network devices.

Power Cables & Adapters
CA-8        Part #119-10
Cigarette plug power cable.

PC-30        Part #127-49
Power Cable for all HDS units.

Protective Covers
CAP-1        Part #000-0124-70
Set of connector caps for HDS units.

CVR-15        Part #124-64
Protective Cover for HDS-10 units.

Transducer Switch Boxes
SB-10BL        Part #46-27
Switches 2 Sonar units between 1 Transducer.

SB-9BL        Part #46-26
Switches 2 Transducers between 1 Sonar unit.
