Humminbird XTD 9 QB 90 Bronze thru Hull Transducer

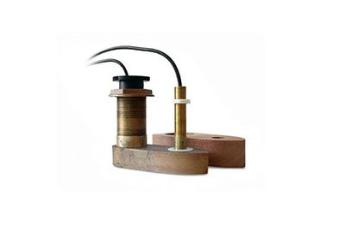

Bronze Thru Hull Tri-Transducer
Quadra Beam, 200/83/455 khz, 200/60/40 degrees with built in temperature and speed. 30'
cable. Transducer dimensions: 7" L X 2.5"W X 1.25" D. Front Shaft: .75" Diameter. Back Shaft:
2" Diameter.
Quadra Beam, 200/83/455 khz, 200/60/40 degrees with built in temperature and speed. 30'
cable. Transducer dimensions: 7" L X 2.5"W X 1.25" D. Front Shaft: .75" Diameter. Back Shaft:
2" Diameter.
Works with the following fish finders:
For Use with
* 1157c
* 300 TX (Tri Beam only, no temp)
* 400 TX (Tri Beam only, no temp)
* 717
* 718
* 727
* 728
* 737
* 747c
* 755c
* 757c
* 767
* 768
* 777c2
* 778C
* 785 c2
* 787c2
* 787c2I
* 788C
* 917C
* 931C
* 931C DF
* 937C
* 937C DF
* 957
* MATRIX 35
* MATRIX 37
* PiranhaMax 180 (Tri Beam only, no temp)
* WIDE OPTIC (Tri Beam only, no temp)
* WIDE PANORAMA (Tri Beam only, no temp)
* WIDE PARAMOUNT (Tri Beam only, no temp)
* WIDE PORTRAIT (Tri Beam only, no temp)
* 1157c
* 300 TX (Tri Beam only, no temp)
* 400 TX (Tri Beam only, no temp)
* 717
* 718
* 727
* 728
* 737
* 747c
* 755c
* 757c
* 767
* 768
* 777c2
* 778C
* 785 c2
* 787c2
* 787c2I
* 788C
* 917C
* 931C
* 931C DF
* 937C
* 937C DF
* 957
* MATRIX 35
* MATRIX 37
* PiranhaMax 180 (Tri Beam only, no temp)
* WIDE OPTIC (Tri Beam only, no temp)
* WIDE PANORAMA (Tri Beam only, no temp)
* WIDE PARAMOUNT (Tri Beam only, no temp)
* WIDE PORTRAIT (Tri Beam only, no temp)
