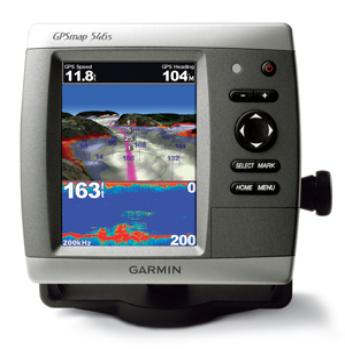

Garmin GPSMAP 546 Chatplotter/Fish Finder Parts
Product Description:
The GPSMAP 546 is a compact chartplotter that features a high-resolution, super-bright 5” VGA
color display along with an improved high-speed digital design for increased map drawing and
panning speeds. It’s ready to go with an easy-to-use interface and a built-in, satellite-enhanced
basemap preloaded with all U.S. coastal areas, including Alaska and Hawaii as well as detailed
charts for the Bahamas. The GPSMAP 546 also accepts BlueChart® g2 Vision cards for added
features and functionality such as high-resolution satellite imagery, 3-D views and Auto Guidance
technology.
Explore the Seas

The GPSMAP 546 comes ready to go with preloaded U.S. coastal area map data. For areas
outside the U.S., the GPSMAP 546 has a worldwide basemap with satellite images in place of
more traditional maps. The GPSMAP 546 also comes standard with a high-sensitivity GPS
receiver for superior satellite tracking and quicker acquisition times. In addition, the GPSMAP 546
can receive U.S. graphical weather data via optional GXM 51 satellite receiver/antenna. And with
an SD card slot, it’s easy to add additional maps without connecting to a computer.
Works with:
Accessory Kits
NMEA 2000® Starter Kit
010-11442-00

Mounts
Marine swivel mounting bracket (replacement)
010-10921-00

2nd Mounting station
010-10930-00

Flush Mounting Kit
010-10447-05

Cables
Chartplotter Power/Data Cable
010-10917-00

Fishfinder/sounder Power/data Cable
010-10918-00

NMEA 2000® Power Cable
010-11079-00

NMEA 2000® Backbone Cable, 1 ft
010-11076-03

NMEA 2000® Backbone Cable (2 m)
010-11076-00

NMEA 2000® Backbone Cable (6 m)
010-11076-01

NMEA2000 BackboneCable 10m
010-11076-02

6ft NMEA 2000 backbone cable, right angle
010-11089-00

Cases and Covers
Protective cover (replacement)
010-10912-00

Adapters
NMEA 2000® Transducer Adapter Kit
010-11525-00

Antennas
GA 30 GPS Antenna
010-00872-00

Connectors
NMEA 2000® Tee Connector
010-11078-00

NMEA 2000 Terminator (Male)
010-11080-00

NMEA 2000 Terminator (Female)
010-11081-00

NMEA 2000® Inline Terminator
010-11096-00

Receivers
GXM 51
010-00753-00

Software
Chartplotter Update on SD™ card
010-00427-05

Transducers
200KHz, 20deg, plastic, transom mount, depth
010-10105-00

Transom Mount Transducer with Depth, Temperature and Speed (200 kHz, 20 deg)
010-10106-00

Thru-hull Mount Transducer with Depth (200 kHz, 12 deg)
010-10107-00

200KHz, 14deg, plastic, trolling motor, depth, temp
010-10200-00

200KHz, 12deg, plastic, thru-hull mount, depth, temp
010-10218-00

200KHz, 14 deg, plastic, in-hull mount, depth
010-10224-00

200/50KHz, 12/45deg, bronze, thru-hull mount, depth
010-10182-00

Thru-hull Mount Transducer with Depth and Temperature (200/50 kHz)
010-10182-01

Transom Mount with Depth, Temperature and Speed
010-10192-01

Thru-hull Mount (200/50 kHz, 12/45 deg)
010-10194-00

Thru-hull Mount Transducer with Depth and Temperature
010-10194-01

Transom Mount with Depth and Temperature (200/50 kHz, 10/40 deg)
010-10272-00

In-hull Mount Transducer (200/50 kHz, 12/45 deg)
010-10327-00

Thru-hull Mount with Depth, Temperature and Fairing
010-10451-00

Bronze, thru-hull w/ fairing, Depth & Temp, AIRMAR B45 Narrow Stem
010-10983-00

200/50 Khz, 5/17 degree, 2KW, plastic/bronze R99, thru-hull mount transducer, w/ID, w/fairing
010-10642-00

R199, 2kW In-hull Transducer
010-10643-00

Acc,Xdcr,1kW,Thru,B258,Xdcr ID
010-10703-00

Thru-hull Mount Transducer (1 kW, 200/50 kHz)
010-11010-00

Thru-hull Mount Transducer (1 kW, 200/50 kHz)
010-11010-01

Access,Xdcr&Fairing,1kW Thru,SS270W,Xdcr ID
010-11140-00

Thru-hull Mount Smart Transducer with Depth and Temperature (20° Tilt)
010-11105-00

Thru-hull Mount Smart Transducer with Depth and Temperature (12° Tilt)
010-11105-01

Transom Mount Smart Transducer with Depth, Temperature and Speed (235 kHz, 11 degrees)
010-11050-00

Thru-hull Mount Smart Transducer with Depth, Temperature and Speed
010-11051-00

Transom Mount Smart Transducer with Depth and Temperature (235 kHz, 11 degrees)
010-11050-20

Other
Weather Cap (NMEA 2000® cable)
010-10817-01

Weather Cap (NMEA 0183 Cable)
010-10817-02

NMEA 2000 network switch
K00-00368-00
