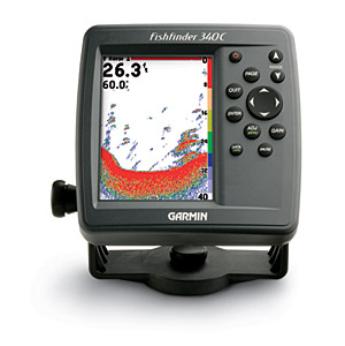

Garmin Fishfinder 340C Fish Finder Parts
Product Description:
Twelve square inches of brilliant color — with the Fishfinder 340C's bright color display, finding
fish is easier than ever.

The Fishfinder 340C has a brilliant color TFT display and ultra-dim backlight mode so you can
see the screen clearly, in bright sunlight or after sundown. Choose from a dual-beam or dual-
frequency transducer to optimize the 340C for freshwater or off-shore fishing. And, the 340C
records water temperature data and lets you set multiple alarms, including drift alarms and timers.
Connect to Another Plotter

The Fishfinder 340C can connect to Garmin's CANet® — a one-megabit Controller Area Network
that allows users to connect to one of the new GPSMAP®-series chartplotters. Once connected,
you can read sonar information on the 340C from from plotters located elsewhere in your boat.

Other features:
* Power output: 500 watts (RMS), 4000 watts (peak to peak), dual frequency 400 watts(RMS),
3200 watts (peak to peak), dual beam
* Ultrascroll™ refreshes data with lightning speed
* Auto Gain setting adjusts sonar sensitivity automatically
* See-Thru® technology shows weak and strong returns simultaneously
* Water temperature log and graph
* Round flasher display mode and A-scope
* Whiteline shows you how thick the bottom is
* 2X and 4X automatic and manual zoom
* Unit remembers user settings when it is turned off
* Battery voltage indicator
* NMEA sonar data output
Transom Mount 010-10106-00
Thru Hull 010-10107-00
Transom Mount 010-10249-00
In Hull 010-10224-00
Thru Hull 010-10218-00
Trolling Motor Mount 010-10200-00
Transom Mount 010-10272-00
Transom Mount 010-10192-01
In Hull 010-10327-00
Thru Hull 010-10182-01
Thru Hull 010-10182-00
Thru Hull 010-10194-00
Thru Hull 010-10193-01
Transom Mount 010-10105-00
Speed and Temperature Sensors:
Thru Hull 010-10365-00 Speed and Temp
Speed Sensor 010-10279-01
Temperature Probe 010-10225-00
Power and Adapter Cables:
Transducer Cables:
10 Foot Extension 010-10715-00 Cable
20 Foot Extension 010-10716-00 Cable
Mounting Brackets and Kits:
Protective Covers:
GPS and NMEA Accessories:
CAN Kit 010-10742-00
Vehicle power cable 010-10208-00
Power/data cable 010-10209-00
Retrofit adapter cable 010-10210-00
Thru-hull Mount Depth/Temp 010-10451-00
Suction cup transducer adapter 010-10253-00
Trolling motor transducer adapter 010-10251-00
2nd Mounting Station 010-10356-00
Flush Mounting Kit 010-10447-04
Gimbal Mounting Bracket 010-10357-00
Vehicle Power Cable 010-10077-00
Power/Data Cable 010-10785-00
Protective Cover 010-10786-00
Swivel Mounting Bracket 010-10522-00
USB to RS232 Converter Cable 010-10310-00
