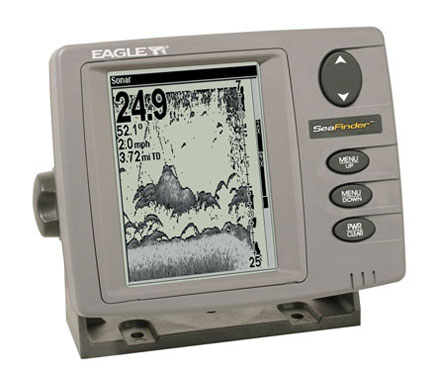

Eagle SeaFinder 250 DF Fish Finder
Big LCD display, performance, and features including built-in water temp sensor. The new
SeaFinder® 250 DF gives you dual-frequency sonar with all the best features, but at the most
affordable price!

* 4.5" (11.4 cm) diagonal screen
* Film SuperTwist LCD
* 240x240 pixel resolution
* Backlit screen and keypad
* 4-level grayscale

* Depth capability to 800 ft* (244 m) with 300 watts RMS power
* High-performance, low-profile 50/200 kHz Skimmer® dual-frequency transducer with built-in
temp sensor delivers an extra wide angle of fish detection area with high sensitivity settings -
Operates at boat speeds up to 70 mph (61 kts)
* Advanced Signal Processing (ASP™) automatically adjusts your settings for the best sonar
* Patented GRAYLINE® separates fish from nearby structure and bottom
* Advanced Fish I.D.™ shows underwater targets in different sizes of fish symbols
* FishTrack™ displays target depth readings above fish symbols
* Surface water temperature readings come from a built-in temp sensor in the transducer
* Zoom with zoom bottom tracking and easy zoom-in/out control

* Easy to connect/disconnect with uniplug cable connector
* Internal back-up memory for key sonar settings
* Completely sealed and waterproof, even for use in harsh saltwater environments
200 khz transducer
PDT-WSU        Part #000-0106-50
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)

Dual Frequency Transducer
HST-50/200-WSU        Part #106-49
Transom-mount, dual frequency skimmer with built in temperature sensor (50 kHz 35 degree &
200 kHz 12 degree). Includes power cable. (25 ft cable) CAN BE USED WITH X67C, M68C AND

Gimbal Brackets and In-Dash Mounting Kits
FM-5        Part #113-04
Flush mount kit.

GB-14        Part #101-99
Gimbal bracket.

GBSA-1        Part #51-83
Gimbal bracket swivel adapter.

Gimbal Knobs and Washers
GK-9        Part #101-80
Gimbal knobs.

Transducer Adapter Cables
TA-BL2U        Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.

TA-X2U        Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.

Transducer Extension Cables
XT-15U        Part #99-91
15' transducer extension cable. Includes power lead.
