Eagle SeaCharter 502C iGPS Fish Finder
Product Description

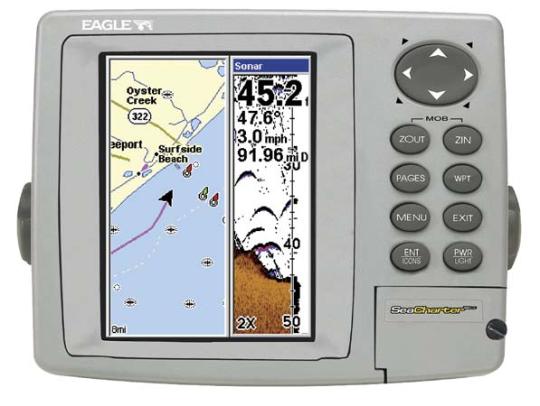

Eagle Seacharter 502C DF Fishfinder/GPS Combo Click to enlarge Eagle Seachart 502C DF
with internal antenna Speed and Temp. Eagle SeaCharter 502C Features Eagle® fullsize, combo
50/200 kHz sonar/GPS+WAAS chart recorder, with 256-color, sunlight-viewable 320Vx240H pixel,
high-res TFT display! Free water temp/trolling speed/distance readings! Ultra-bright, 5" (12.7
cm) diagonal screen 256-color, active matrix TFT LCD
200 khz transducer
Trolling-motor mount, 20 degree pod type with built in temperature sensor (200 kHz). Includes
power cable. (10 ft cable)

Adapter Cables
NDC-4        Part #119-31
NMEA adapter cable.

Dual Frequency Transducer
HST-50/200-WSU        Part #106-49
Transom-mount, dual frequency skimmer with built in temperature sensor (50 kHz 35 degree &
200 kHz 12 degree). Includes power cable. (25 ft cable) CAN BE USED WITH X67C, M68C AND
FISHEASY 320C FOR DEEPWATER/SALTWATER APPLICATIONS

Gimbal Brackets and In-Dash Mounting Kits
GB-14        Part #101-99
Gimbal bracket.

MB-7        Part #101-62
R-A-M 1" ball mount bracket with arm and mounting plate.

Gimbal Knobs and Washers
GK-9        Part #101-80
Gimbal knobs.

Mapping
FHSP-E        Part #108-206
Fishing Hot Spots Pro - EAST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the eastern United States. (AL, FL, GA, OH, KY, TN, SC, NC, VA, WV, PA, NY,
NJ, MD, DE, CT, RI, MA, NH, VT, ME).

FHSP-N        Part #108-205
Fishing Hot Spots Pro - NORTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the northern United States. (ND, SD, MN, IA, WI, MI, IL, IN, MT, NE, WY).

FHSP-S        Part #108-207
Fishing Hot Spots Pro - SOUTH Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the southern United States. (KS, OK, NM, TX, MO, AR, LA, MS, AZ, CO).

FHSP-W        Part #108-208
Fishing Hot Spots Pro - WEST Pre-loaded data card featuring expanded coverage of electronic
charts for lakes in the western United States. (WA, OR, CA, ID, NV, UT).

Fishing Hot Spots Pro        Part #FHSP
Superbly-detailed electronic lake mapping without the necessity of using a computer. The
preloaded memory card contains superb coverage of over 1,300 of America’s premier inland
fishing lakes for one of four specific regions. All mapping includes depth contour lines and
excellent shoreline detail, while over 380 select lake charts provide added angler-helpful Fishing
Hot Spots® data and detail.

FreedomMaps Europe        Part #FM Europe
Convenient plug-&-play maps include Eurpoean mapping information without the necessity of
using a computer. The preloaded memory card contains high-detail data for various European
countries and/or regions. Included is a floatable, waterproof card holder.

Speed/Temperature Sensors
ST-TU        Part #99-75
Speed/temp probe.

TS-2U        Part #99-77
Temperature probe for Temp 2.

Transducer Adapter Cables
TA-BL2U        Part #119-00
Adapts blue connector 50/200 kHz or 200 kHz transducers to units with newer black 50/200 kHz
or 200 kHz transducer/power connector.

TA-X2U        Part #99-78
Adapts new gray connector transducers to units with new black transducer/power connector. Built
in temperature will not function.

Transducer Extension Cables
XT-15U        Part #99-91
15' transducer extension cable. Includes power lead.
